Ideal for applications with changing viscosity requirements
- Use for either high-speed or high-torque mixing
- Solid-state controller for precise speed control

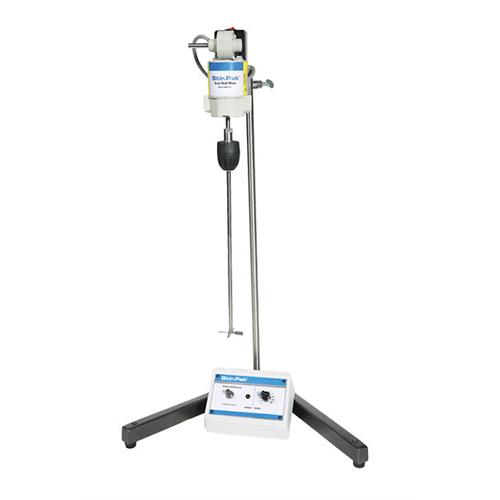

Two motor axles give you two mixers in one! The direct-drive axle provides high-speed, low-viscosity mixing; switch to the gear-reduction axle for your low-speed, high-viscosity mixing needs.
Rugged, permanent-magnet, totally enclosed nonventilated (TENV) motor has permanently lubricated ball bearings. Gear-shaft gear ratio is 20:1. Our solid-state controller maintains speed regulation better than ±2%—critical for materials that change viscosity as mixing progresses.
Improved torque limiting feature protects against motor gear failure. Controller is totally enclosed and has an IP24 rating for protection against dust and water; it is UL-listed and CSA-approved. A 6-ft (1.8-m) cord connects the controller and the motor.
Keyless chuck accepts shafts from 5/16" to 3/8" (8 to 10 mm) dia
Mixer includes: Controller 6" (152 mm) L mounting rod and 6-ft (1.8-m) three-wire cord with plug
Complete system adds: 3/8" (9.5 mm) dia x 12" (305 mm) L, shaft; 3" dia (76 mm dia) propeller; double clamp; and support stand
Speed (rpm): Direct-drive shaft: 50 to 5000; Gear shaft: 3 to 250 rpm
hp: 1/50
Max torque (in-oz): Direct-drive shaft: 4; Gear shaft: 80
Power (VAC, Hz): 115, 50/600
