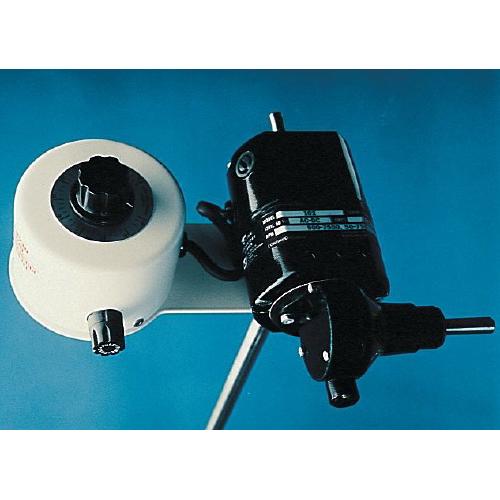

Stirrer, Model 102, Double Shaft

Not yet rated

  • Top mounted Basic Speed Control
  • Provides increased torque with 10:1 gear reduction
  • Offers the capability of two mixing shafts for multiple applications and added versatility
  • Mixes up to two gallons of light weight oils
Frequency50 / 60 Hz
Speed ControlElectronic
No. of Output Shafts2
Speed Range-Direct Drive500 to 7500 rpm
Speed Range-10:150 to 750 rpm
Torque-Direct Drive0.15 in-lb
Torque-10:11 in-lb
Shaft Size5/16" (7.9 mm)
Chuck TypeCollet Model 193
Dimensions6.5 x 8.5 x 7"
(16.5 x 21.6 x 17.8cm)
Warranty5 year manufacturer's industry leading limited warranty on parts and labor
Unit Supplied withMixer includes collet chuck and 8" (20.3cm) mounting rod with carriage bolt and wrench for mounting motor to support stands. An additional clamp (110B or 112) is required to attach the motor's mounting rod to a support stand. Support Stands and Holders sold separately.
OriginManufactured in the USA
