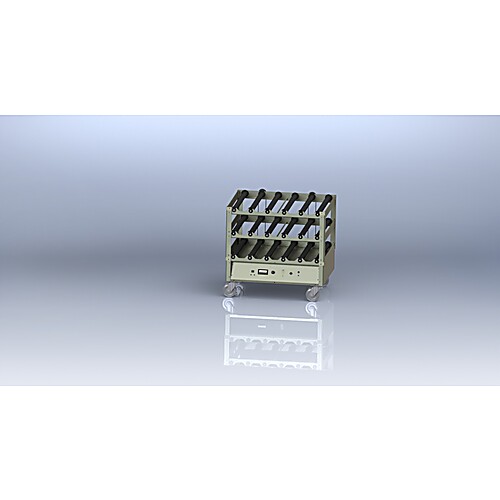

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses, and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid-state control with heavy-duty DC motor and digital display. Optional All Position Drives are available for use with plastic roller bottles to prevent slipping of the light-weight bottles.
SPECIFICATIONS
Bottle Speed: 0.1 - 4.0 RPM Standard
Drive and Control System: Solid-state electronic control with digital display.
Tolerance: +/- 2%
| Electrical Rating: | 7631-71000 | 100±10 VAC@ 50 Hz line voltage |
| (Base number) | | 3.0 Amp@ 100V, 50 Hz power consumption |
| 7631-75000 | 115±10 VAC@ 60 Hz line voltage |
| | 3.0 Amp@ 115V, 60 Hz power consumption |
| 7631-75220 | 230±10 VAC @ 50/60 Hz line voltage |
| | 2.0 Amp@ 50/60 Hz power consumption |
7631-75222 : - Base and 2 Decks
- Capacity: 15 vessels
- CM Dimensions: 73 x 76 x 63
- IN Dimensions: 29 x 30 x 24 ¾
Roller Shaft Construction: Non-transferring chemical-resistant rubber rollers with key-shape.
Clearance between Decks for Bottle Placement: 134 mm
Construction Material: Aluminum, enamel finish.
Usable Roller Length: 51 cm
FEATURES
- Brushless motor with controller for smooth operation and no maintenance Easy-to-remove roller bar assembly (tool provided)
- Digital LCD display Locking speed control knob
- Rotation switch for CW and CCW operation
- Accepts all Bellco Roller Bottles (glass or plastic* in 110mm or 120mm diameter)
* 7630-50555 All Position Drive is recommended for use with plastic bottles
