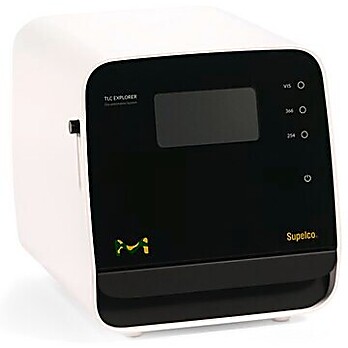

The TLC Explorer Documentation System is designed to document and evaluate thin-layer chromatographic (TLC) plates. It offers a safe, fast and flexible way to visually inspect and digitally record images of TLC plates after their chromatographic development workflow in the laboratory. For detecting different substance classes, the device contains three different LED light sources (white light (VIS), UVA (366 nm) and UVC (254 nm), which illuminate the plates from above in direct-light mode. Recorded plate images can be evaluated to generate reports or export the data for further processing with other systems.
Accessories:
• The powerbank can be used in order to remotely operate the TLC Explorer Documentation System
• The Base Plate is designed for the TLC plate analysis during operation of the TLC Explorer Documentation System. An additional Baseplate can simplify and speed up the workflow, since one Baseplate can be prepared while a second one is recorded in the TLC Explorer.
• The Illumination unit contains 3 different wavelength for excitation at 254 nm, 366 nm and VIS light when operating the TLC Explorer Documentation System.
• The Electronic unit is a spare part suitable for the TLC Explorer Documentation System.
• The Drawer unit is a spare part suitable for the TLC Explorer Documentation System.
• The Front unit is a spare part suitable for the TLC Explorer Documentation System
• The Dust Cover is appropiate for proper protection from dust designed for the TLC Explorer Documentation System
• The Antenna set unit is a spare part suitable for the TLC Explorer Documentation System
