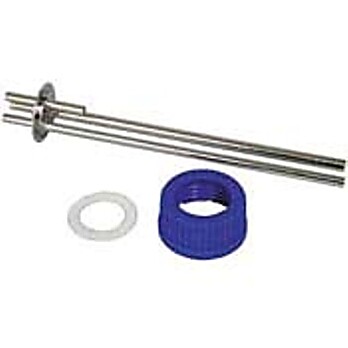

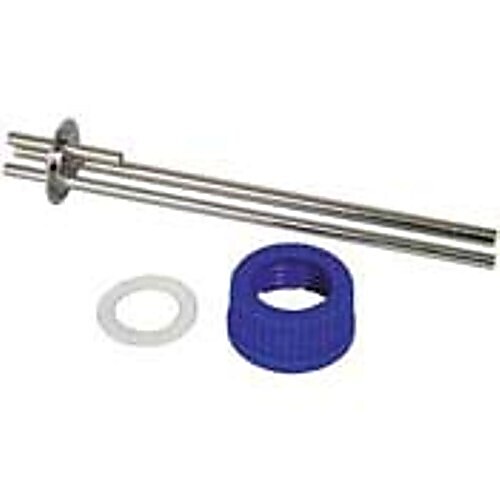

Thermowell Assemblies are used to hold inside one tube the RTD temperature sensor that monitors the temperature within the vessel in conjunction with a temperature controller. There are also tubes for addition of media and vent tube. Specification:
- 45mm Thermowell Assembly For L/P 6l Vessel
- Seam Welded - Electropolish Finish
- 316l Stainless Steel
- Supply With S/Cap (A523-599) & White Silicone Liner (A523-600)
- 1- Thermowell Tube: 5/16"Od X .242"ID X 1.0" Above X10 9/32" Insertion
- 1- Siphon Tube: 1/4"Od X 5/32" Id X 1.0" Above X 10 9/32" Insertion
- 1- Vent Tube: 1/4"Od X 5/32" Id X 1.0"
