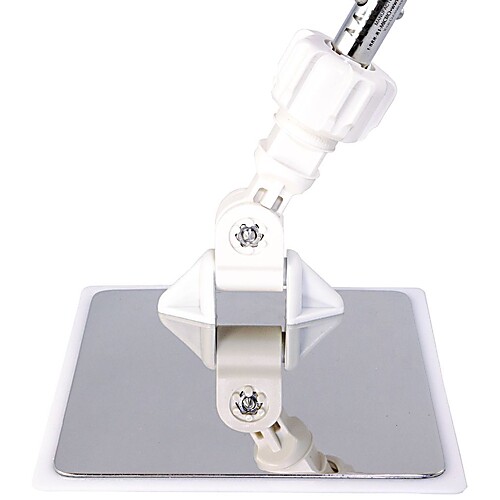

Micronova Inspection Mirrors are highly polished stainless steel plates with a 360o swivel joint connection that attaches to a threaded STA plastic series or SSU Quick Disconnect stainless steel handle. Operators can safely use the mirror inside process tanks, and around equipment and fixtures to ensure all surfaces have been properly cleaned without introducing a glass mirror into a controlled environment.
Features and Benefits
- Stainless steel plates are polished to a mirror finish
- 360o swivel joint connection version facilitates use behind and below equipment
- Attaches to either SSU or STA series handles
- Optional flashlight and mirror cover available
- Options without plastic backing are autoclavable
Applications
- Stainless steel plates are polished to a mirror ?nish
- 360 swivel joint connection version facilitates usebehind and below equipment
- Attaches to either SSU or STA series handles
- Two convenient sizes 4 x 4 in (10 x 10cm) and6 x 6 in (15 x 15cm)
- 6x6 in mirror with plastic backing option toprotect surfaces
- Optional ?ashlight and mirror cover available
Materials of Construction
- Mirror Plate: Highly electropolished stainless steel
- 360 degree swivel: Polyketone
- Mirror Backing: Acetal
Dimensions
- Plate: 6 x 6 inch, 4 x 4 inch
- Swivel Adapter flat: 2 - 1/2 in
- Swivel Adapter extended: 9 in
- Weight: Less than 2 pounds
Manufactured for use in Controlled Environments
- ISO 5 thru 9 Cleanrooms
- ISO 9001 Certified Manufacturing Facility
