Electric Laboratory Stirrers

• Electronically controlled and built to handle viscosities ranging from light watery solution to high viscosity fluid
• Totally enclosed, non-ventilated motor keeps corrosive fumes and dust out for a long and trouble-free service life
• Permanent-magnet, D.C. motor provides maximum constant torque through entire speed range
• On/Off switch for quick stopping if necessary
• Overload protection-a manually resettable circuit breaker for total safety

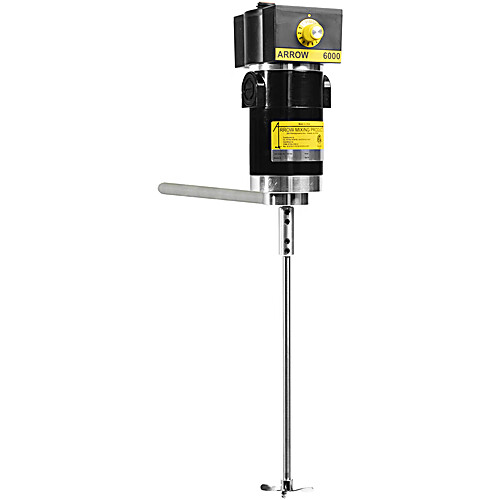

Each model comes complete as shown including aluminum support rod, 9/16” diameter x 10” long and 6 ft. 3-wire cord with grounded plug. Shaft and propeller are made of stainless steel to resist most acids and chemicals for easier cleaning. Shaft measures 12” long x 3/8” diameter and a 2 1/2” propeller.

Light Duty Stirrer (8583L20)

• Ideal for stirring light viscosity fluids.
• Delivers 16.8 in.-oz. or 1.05 in.-lbs. of torque constant.
• Speed range from 300-6,000 RPM’s.

General Duty Stirrer (8583L24)

• Will handle a wide range of medium-duty applications.
• Delivers 36 in.-oz. or 2.25 in.-lbs. of torque constant.
• Speed range from 50-2,000 RPM’s.

Gear Head (8583L28)

• Specifically designed for medium to heavy duty viscous materials.
• High torque gearhead stirrer delivers 118.56 in.-oz. or 7.41 in.-lbs. of torque constant and will maintain constant speed regardless of viscosity changes as mixing progresses.
• Speed range from 20-1,000 RPM’s.

Gear Head (1195R31)

• Engineered for heavy duty viscous conditions.
• High torque gearhead stirrer provides a 205.76 in.-oz. or 12.86 in.-lbs. torque constant.
• Speed range from 10-350 RPM’s.

Heavy Duty Stirrer (1195R32)

• Forward/Reverse switch enhances versatility in mixing operations.
• This heavy duty stirrer comes standard with a larger 4-1/4” propeller.
• Direct drive stirrer delivers 56 in.-oz. or 3.5 in.-lbs. of torque constant.
• Speed range from 100-2,000 RPM’s.

Heavy Duty Stirrer (1195R33)

• Heavy duty, high torque, direct drive stirrer ideal for rigorous mixing tasks.
• Direct drive stirrer providing 93.44 in.-oz. or 5.83 in.-lbs. of torque constant.
• Speed range 50-1200 RPM’s.

Light Duty Stirrer (1195R34)

• Light duty made for small-scale production.
• Direct drive stirrer offering 10.08 in.-oz. or .63 in.-lbs. torque constant.
• Speed Range 80-4,000 RPM’s.
