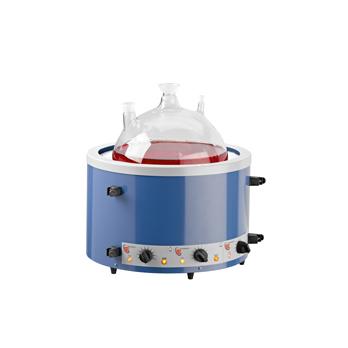

The CMUV Electromantles deliver the benefits of the CMU Electromantle, but do so for very large 60° funnels, as well as pear-shaped and round bottom flasks. This is achieved through a "V-shaped" design for the heating mantle, with funnels being accommodated through a bottom opening in the Electromantle base.
CMUV Electromantles are available with and without controls. For controlled mantles, heating control is provided by a built-in solid state Simmerstat energy regulator. For uncontrolled mantles, a range of external controllers are available.
Key Features
- Bottom opening accommodates 60° funnels of various diameters
- Also accepts large capacity round bottom and pear-shaped flasks
- Large capacity between 10 litres to 22 litres
- Complete control of heating is provided by 3 separate electrical circuits that enable independent top, middle and bottom heating of flasks, each controlled with its own dial switch
- Spill-proof protection against electric shocks via a grounded earth stainless steel screen between the flask and the heating element and double fuses
- Coiled heating element, suspended within a thermal insulating cartridge, provides maximum heat transfer and support
- Replaceable insulated heater cartridge
- Maximum element temperature 450°C
- Built-in energy regulator
- Available with and without controls
- Controller available for uncontrolled model
- Indicator lamps for power and heater operation
- An easy to clean powder coated aluminum outer casing
- "Cool-to-touch" outer casing
- Non-skid feet and 3 support rod clamps (but not including the support rods)
Certifications: CE
