Yamato

Constant Temperature Water Baths

Not yet rated

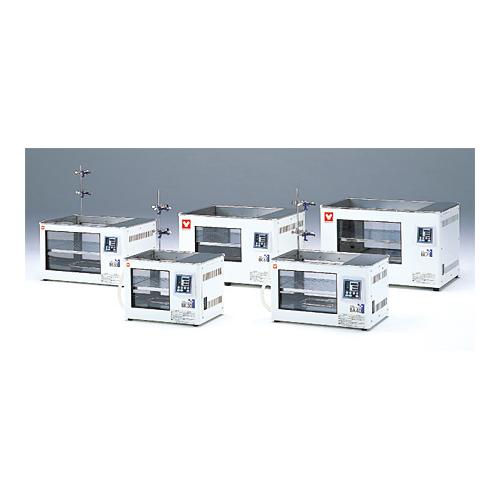

Constant Temperature Water Baths
  • An extremely high degree of temperature adjustment precision is achieved by using a high-precision thermostat and circulation pump.
  • Settings for the temperature and timer can be easily input using the up and down keys, and the settings appear on a digital display.

The BA/BK models are deep constant temperature water baths.

The BK model enables fixed operation, while the BA model allows for programmed operation. For each model, there are five kinds of tank capacities: 27L, 42L, 70L, 109L, and 144L.

ModelBK300 BA300BK400 BA400BK500 BA500BK610 BA610BK710 BA710
Stirring methodStir by pump
Temp. control accuracy±0.02~±0.07°C
Temp. distribution accuracy±0.3°C
Max. temp. reaching time~120min.~110min.~165min.~160min.~200min.
Interior materialStainless steel and glass
Temp. controllerPID control by microprocessor (BK: Fixed temperature operation, BA: Fixed temperature and program operation, 1 pattern 30 steps or 2 pattern 15 steps)
SensorW sensor: Pt resistance thermometer, Pt 100Ω (temp. controller) + K thermocouple (overheat protector)
Temp. setting / displayDigital setting and display
Overheat protectorON / OFF by microprocessor
Heater (SUS316)1.3kW2.2kW2.4kW3.5kW4.5kW
Stirring System (Magnet pump)6W30W60W
Operating temp. rangeRT+5~80°C
Timer1min.~99Hrs. 59min. to 999Hrs. 50mins, Digital setting, Auto start, Auto stop, Quick auto stop
Safety deviceSelf-diagnostic functions (Heater disconnection, SSR short circuit, Abnormal sensor, Over current), Electric leakage breaker, Over heat protector
Internal dimensions WxDxH300 × 300 × 300 mm400 × 350 x 300 mm500 × 400 × 350 mm548 × 500 × 400 mm640 × 500 × 450 mm
External dimensions WxDxH490 × 360 × 367 mm590 × 410 × 367 mm690 × 460 × 417 mm738 × 560 × 467 mm830 × 560 × 517 mm
Window dimensions WxH240 × 215 mm340 × 215 mm440 × 265 mm340 × 215 mm440 × 265 mm
Bath capacity~27L~42L~70L~109L~144L
Shelf pitch30mm
Number of plates56910
Drain hoseø15 × 20mm
Power source 50/60HzAC115V / AC220VSingle phase AC220V
12.5 / 6.5A20A / 10.5A22A / 11.5A17.5A23A
Weight~19kg~25kg~30kg~36kg~46kg
Included accessoriesShelf plate 1pc., clamp 2pcs., stand 1pc., clamp holder 2pcs., tube connector 1pc., drainage cap 1pc.

Please Enter Your Order Info

Filter by:

  • Clear Filters
Product Detail
Thomas No.
1171T06
Mfr. No.
BK300
Description
Precision Constant Temperature Agitating Water Bath, 27L 115V 12.5A/220V 6.5A 50/60Hz
list price/quantitytotal
$0.00
Thomas No.
1171T07
Mfr. No.
BK400
Description
Precision Constant Temperature Agitating Water Bath, 42L 115V 20A/220V 10.5A 50/60Hz
list price/quantitytotal
$0.00
Thomas No.
1171T08
Mfr. No.
BK500
Description
Precision Constant Temperature Agitating Water Bath, 70L 115V 22A/220V 11.5A 50/60Hz
list price/quantitytotal
$0.00
Thomas No.
1196W64
Mfr. No.
BK610
Description
Precsion Constant Temperature Agitating Water Bath, 109L 220V 17.5A 50/60Hz
list price/quantitytotal
$0.00
Thomas No.
1196W65
Mfr. No.
BK710
Description
Precsion Constant Temperature Agitating Water Bath, 144L 220V 23A 50/60Hz
list price/quantitytotal
$0.00
Thomas No.
1171T09
Mfr. No.
BA300
Description
Programmable Precision Constant Temperature Agitating Water Bath, 27L 115V 12.5A/220V 6.5A 50/60Hz
list price/quantitytotal
$0.00
Thomas No.
1171T10
Mfr. No.
BA400
Description
Programmable Precision Constant Temperature Agitating Water Bath, 42L 115V 20A/220V 10.5A 50/60Hz
list price/quantitytotal
$0.00
Thomas No.
1171T11
Mfr. No.
BA500
Description
Programmable Precision Constant Temperature Agitating Water Bath, 70L 115V 22A/220V 11.5A 50/60Hz
list price/quantitytotal
$0.00
Thomas No.
1196W62
Mfr. No.
BA610
Description
Programmable Precision Constant Temperature Agitating Water Bath, 109L 220V 17.5A 50/60Hz
list price/quantitytotal
$0.00
Thomas No.
1196W63
Mfr. No.
BA710
Description
Programmable Precision Constant Temperature Agitating Water Bath, 144L 220V 23A 50/60Hz
list price/quantitytotal
$0.00
