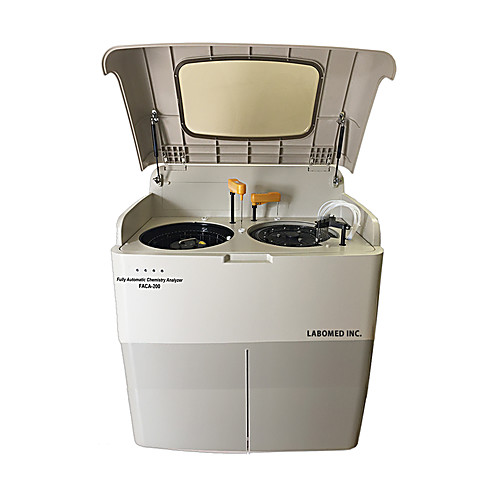

Labomed introduces an automatic chemistry analyzer with varying testing capacities. 200 tests/hour.
System Functions
- Type: Fully Automated, Random Access Biochemistry Analyze
- Throughput: 200 tests, up to 280 tests/hr with ISE (optional)
- Test Mode: End point, Kinetics, Fixed Time, lmmunoturbidimetry, Monochromatic, Bi-chromatic and Multi-Standard Analysis, Linearity and Nonlinearity Calibration, Single and Dual Reagents can be used
- Test Setting: Programmable for single-parameter, multi-parameter, combined parameter, batch test
- Parameter Setting: Completely open for editing test parameters and calculation parameters
Sample System
- Sample Tray: 44 sample positions for primary tubes, test tubes and various sample cups, Whole sample tray is removable and replaceable. Any position can be aligned as the emergency test position.
- Sample Volume: 3 µL – 30 µL, programmed by 0.1 µL step
- Sample Handling: Dilute and retest automatically when the sample's concentration is beyond limitation
- Sample Probe: Liquid level detection and collision protection
- Probe cleaning: Automatic washing for both inside and outside, carry over <0.1%
- Syringe: High performance syringe, durable and maintenance free
- Optional item: Bar code reader
Reagent System
- Reagent Tray: 44 positions for Single and Dual reagents, reagent positions can be aligned freely
- Refrigeration: Refrigerated reagent compartment, 24 hours non-stop cooling with Peltier element to maintain temperature 4-15°C
- Reagent Bottle Volume: 35ml and 20ml, Slope bottom design
- Reagent volume: 150 µL - 300 µL, prograrnmed by 0.1µ1 step
- Reagent Probe: Automatically detecting the liquid level; collision protection
- Reagent pre-heating function, inventory checking
- Real time monitoring of reagent residual volume and auto alarm
- Probe Cleaning: Washing for both inside and outside, carry over <0.1%
Reaction System
- Reaction Tray: 44 reaction cuvettes with 6mm optical path, good UV penetrability, low consumable, low cost
- Reaction Technology: Back – Dividing – Light – Technology
- Reaction Volume: 250 µL - 300 µL
- Temperature: 37°, with +0.1° fluctuation
- Mixing System: Independent mixer
- Cleaning: Supports automatic cleaning of cuvettes and allows for complete drainage to reduce carry over
- Water consumption: 5L/hour
- Liquid Detection: Detergent, distilled water, waste liquid automatic detection and alarm
Optical System
- Light Source: Halogen lamp 6V/ 10W, life span >3000 hours
- Wavelength: 340nm, 405nm, 450nm, 492nm, 505ml, 546nm, 578nm, 620nm, 670nm, 700nm
- Wavelength Accuracy: +2nm
- Detector: Photoelectron Diode Array
- Absorbance Range: 0.000 Abs -3.000 Abs
Calibration and Quality Control
- Calibration Mode: Linear (one-point, two-point and multi-point ), Logit-Log4P, Logit-Log5P, Spline, Exponential, Polynomial, Parabola
- QC Rules: Westgard Multi-rule
- QC Mode: Intra-day and inter-day QC
Operating System
- Computer: Windows 2000 System or above
- Data Management: Large capacity for results and reaction curves to be displayed, saved and printed
- Report: Edit and print complete reports, format editable, supports network printing
- Port: RS-232
Filters:
- FACA200 will have 10 filters 340,405,450,492,505,546,578,620,670,700nm
Working Conditions
- Power: 220V ±22V, 50/60Hz ± 1Hz
- Power Consumption: <400VA
- Environmental Temperature: 15-30°C
- Humidity: <85%
- Dimension: 760 (L) x 560 (W) X 530 (H) mm
- Weight: >85 Kgs
