Grant Instruments

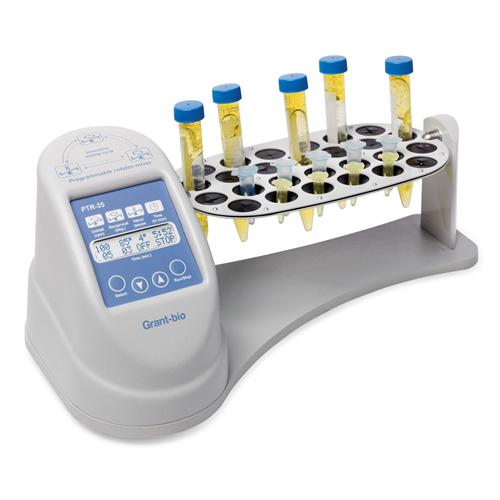

PTR-35 360° vertical multi-function rotator

Not yet rated

PTR-35 360° vertical multi-function rotator

Additional Views

Compact and efficient variable-speed, variable-angle vertical rotators providing all the functionality – vertical rotation, reciprocation and vibration – for thorough mixing of microtubes and reproducible sample preparation. All mixing functions can be linked or used separately.

  • 360°C vertical rotation, reciprocation and vibration functions all in one compact product
  • Vertical rotation speed: 1 to 100 rpm
  • Reciprocal rotation: 1 to 90° turning angle
  • Vibration: programmable in a burst of 1 to 5 seconds
  • Fully programmable sequence of functions, including pause
  • Optional extra platforms to accommodate microplates and tubes up to 50ml
  • Includes universal platform for 1.5ml-15ml tubes

Applications: Life science laboratories - for hybridization reactions, cell growth, soft extraction and homogenisation of biological components in solutions, as well as for reactions of binding and washing of magnetic particles, cell suspensions, incubations, extraction procedures, gel washing mixing capillary blood samples.

Grant bio rotators – models and specifications
ModelPTR-35
Speed rpm1 to 100
Turning angle (reciprocal mode15 to 90
Turning angle (vibration mode)1 to 5
Timer, with automatic switch-off1 min to 24 hours
Timer (orbital/360° vertical or reciprocal mode) sec1 to 250
Timer (vibration mode) sec1 to 5
Pause sec1 to 5
Microtube capacity ø 15mm max26
Maximum load kg0.5
Display
Display2 x 16 character LCD
Ambient temperature range °C4 to 40
Input voltage V dc12
Input current A0.66

Please Enter Your Order Info

Filter by:

  • Clear Filters
Product Detail
Thomas No.
1220A06
Mfr. No.
PTR-35
Description
Vertical Multi-Function Tube Rotator
list price/quantitytotal
$0.00
Thomas No.
1220A08
Mfr. No.
PRSC-10
Description

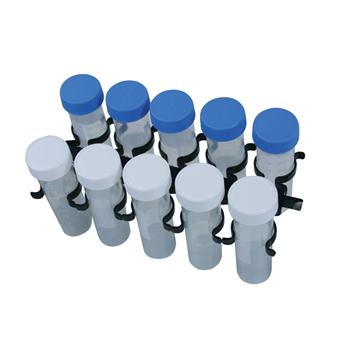

PTR35 heavy duty adaptor for 10 tubes ø 30 mm tube volumes up to 50 ml
list price/quantitytotal
$0.00
Thomas No.
1220A10
Mfr. No.
PRSC-22
Description

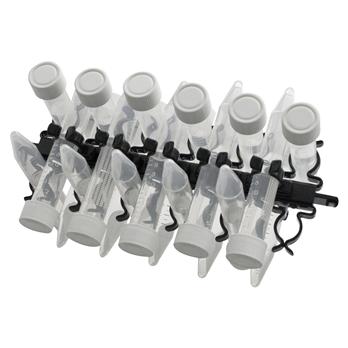

PTR-35 heavy duty adaptor for 22 tubes ø 15 mm tube volumes up to 15 ml
list price/quantitytotal
$0.00
Thomas No.
1220A11
Mfr. No.
PRS-10
Description

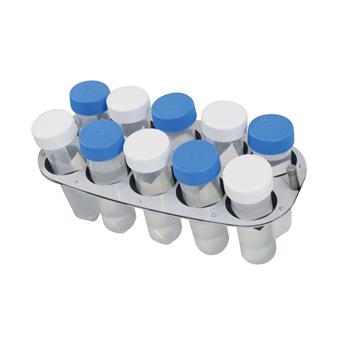

PTR-35 platform for 10 tubes up to ø 30 mm tube volumes up to 50 ml
list price/quantitytotal
$0.00
Thomas No.
1220A07
Mfr. No.
PRS-26
Description

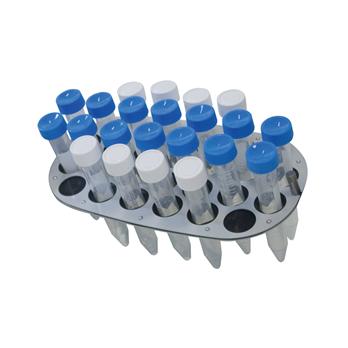

PTR-35 replacement platform, tube adaptor for 26 tubes up to ø 15 mm, 1.5 -15 ml
list price/quantitytotal
$0.00
Thomas No.
1220A09
Mfr. No.
PRS-5-12
Description

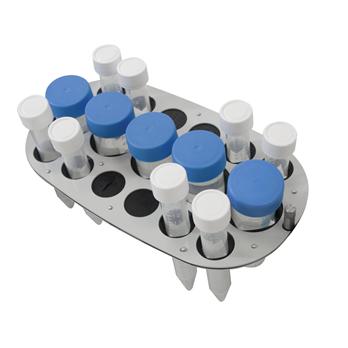

PTR-35 combined platform for 5 tubes up to 30 mm and 12 tubes up to ø 15 mm, tube volumes 50 ml/1.5-15 ml
list price/quantitytotal
$0.00
Thomas No.
1199J34
Mfr. No.
PRS-1DP
Description
PTR-35 platform for 2 microplates or deep well plates
list price/quantitytotal
$0.00
